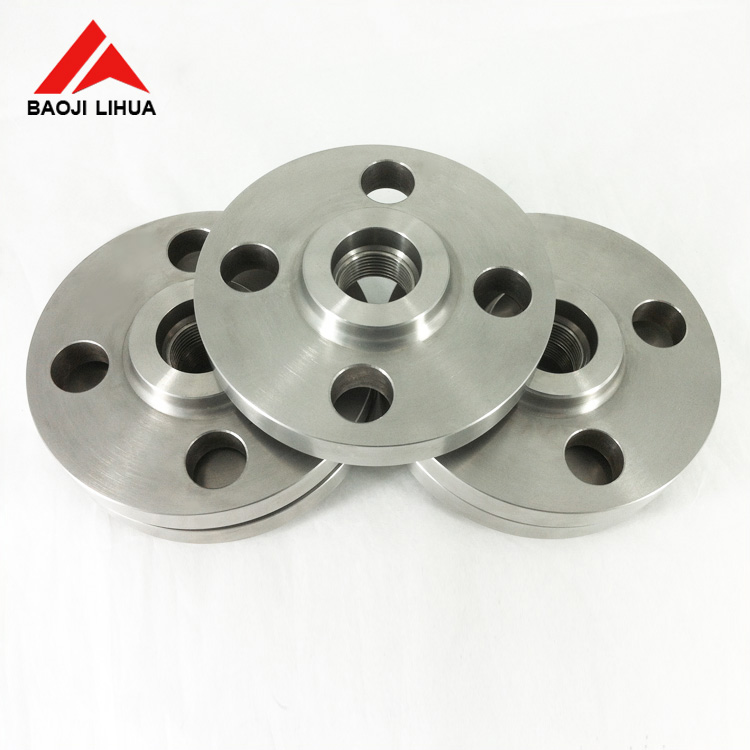

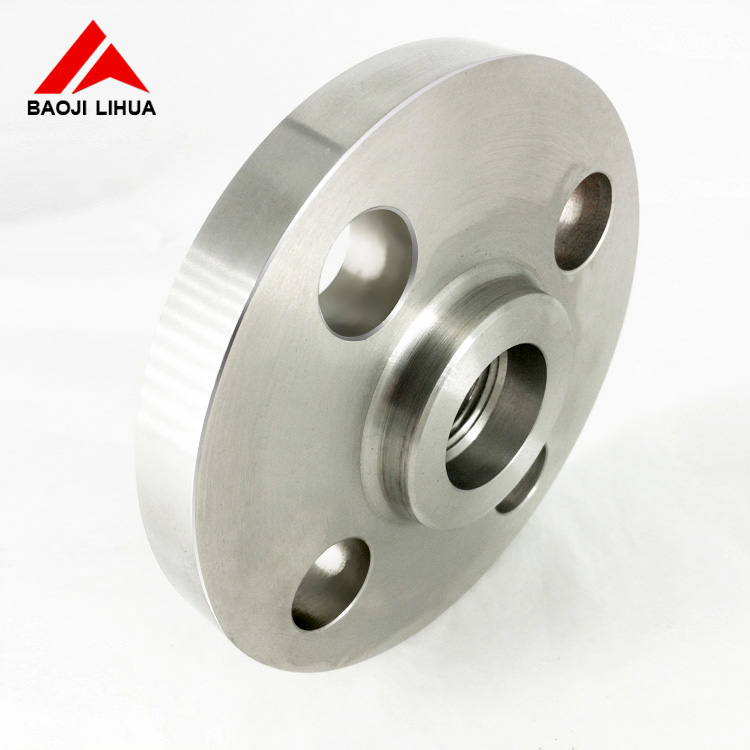

EN1092-1 JIS B2220 Titanium Threaded Flange ASME B16.5

Name: EN10921 JIS B2220 Titanium Threaded Flange ASME B165
Brand: LH-Ti
Price: 1 USD

Buy cheap EN1092-1 JIS B2220 Titanium Threaded Flange ASME B16.5 product

Brand Name : LH-Ti

Model Number : LH-BL

Certification : ISO9001, TUV etc.

Place of Origin : Baoji, China

MOQ : 1 piece

Price : US dollar $30/pc--US dollar $80/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per month

Delivery Time : 3-15 work days

Packaging Details : Wrapped by foam contained in plywood box for export

Type : Threaded Flange

Standard : ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME

Material : Gr1 Gr2 Gr5 Gr7 Gr12 etc.

Application : used in cars, glasses,medical equipment , electronics , petrochemical equ ipment,Pump valve, pipeline, aerospace,Ocean Industry,etc.

Sealing surface : RF

Size : 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure : Class150/300/600/9001500/2500

Surface : Polished

Technique : Forged Casting

Inspection : Ultrasonic Testing & Material Test Report EN10204.3.1

Contact Now

Products Description

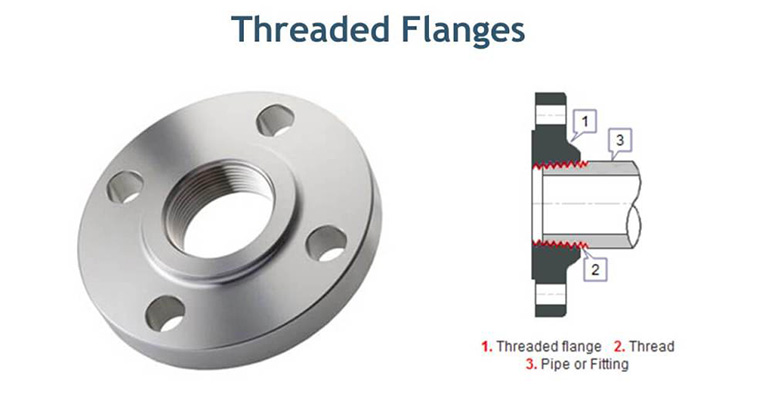

EN1092-1 JIS B2220 Titanium Threaded Flange ASME B16.5

Product Paramenters

Titanium Flanges


Material Grade: Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr12

 Standard: ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5.

 Technique: Forged and CNC Machined.

 Type: WNRF , SORF , TH, BLIND ,SW, PL.

 Application: used in cars, glasses,medical equipment , electronics , petrochemical equ ipment.

 Advantage: Long service life, corrosion -resistant, hign yeiled strenth and tensile strength.

size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Flange Face Type	Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
Grade	Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7
Available Dimensions	OD:200-1300mm ID:100-900mm Height:35-250mm

Related Products (Click on the image to enter the link)


Plate Flat Welding Flange

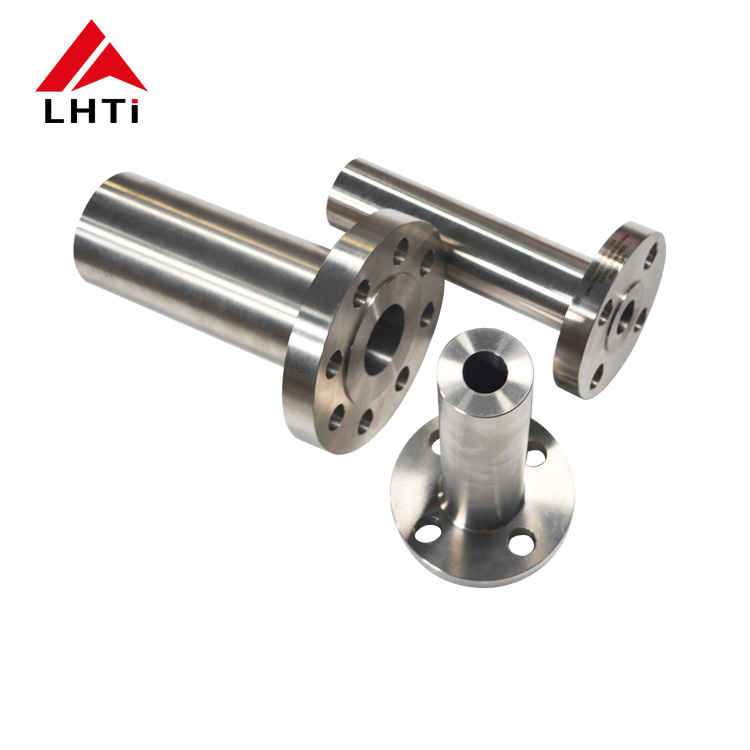

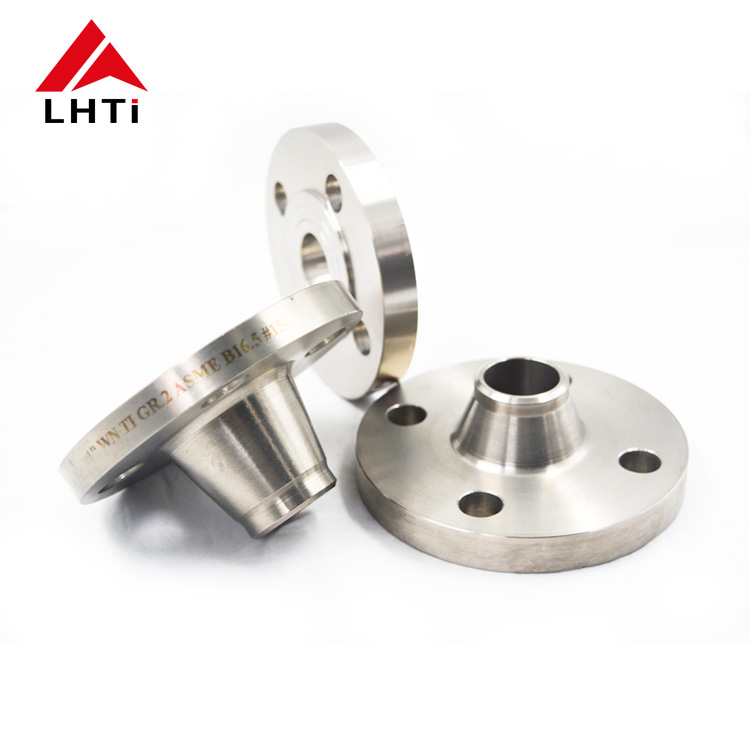

Welded Flange with Neck


Blind Flange

Titanium Gr 2 Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid
 transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Ti Alloy Gr 2 Flange are
 manufactured in accordance with international standards. Titanium Gr 2 Pipe Flange are packaged . Standard export packaging is
 done in plywood cases, inside is filled in foam films to protect goods to ensure that there is no damage during transit. All
 Titanium Gr 2 Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make
 custom marking on Gr 2 Titanium Flanges.

Manufacturing Technique

Production Flow

Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒
Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery

Application

Why Choose Us

1. Service

 * We have the stocks so we would provide our clients the short delivery time
 * Strict control from raw materials till products finished, so the quality is guaranteed.
 * Customized sizes are offered as well as specified sizes and multiple sizes.
 * Strict quality test from raw material to product.
 * Original mill sheet test reports EN 10204.3.1 is available.

 2. Quality Assurance

 A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality
 Management System.

 B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.

 C. Chemical Composition making sure all chemical components can satisfy customer’s demands.

 D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.

 Q1.--How can you ensure the product quality?

 --All products are manufactured according to ASTM standard (Bolts are according to ASME
 standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
 MTC Material Test Certification.

 Q2.--Can you print our LOGO on the products?

 --Sure, and we welcome the customized products.

 Q3.--Can we get the free sample?

 --Sure.

 Q4.--What about the payment terms?

 --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.

 05.--What is the necessary information for a inquiry?

 --Product name, specification, material grade and quantity. If customized products, your drawing and
 special requests also needed.
