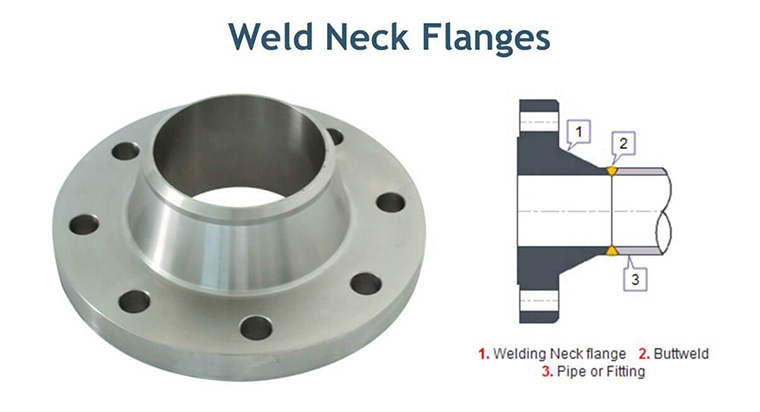

ASME B16.5 EN1092-1 2" Gr2 WNRF Titanium welding neck flange class150
Titanium flanges function

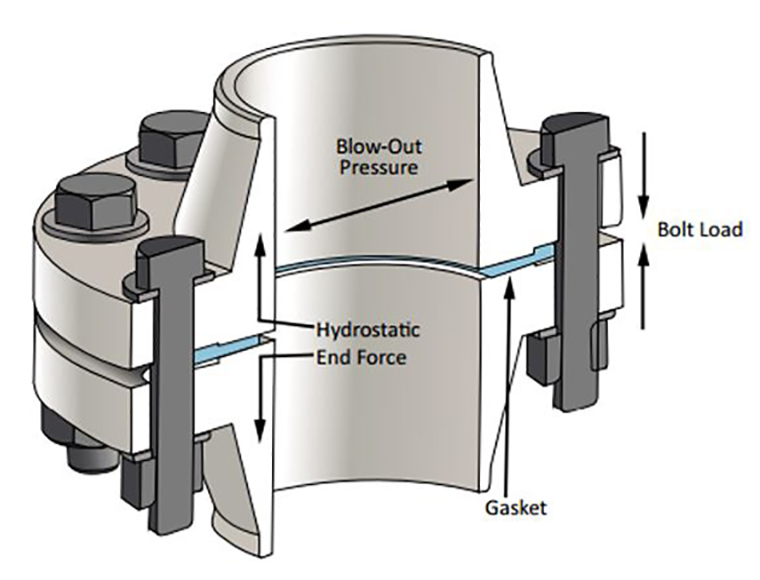

The flange, gasket, and bolt are connected to each other as a detachable connection of a group of combined sealing structures. Flange connection is an important connection method for pipeline construction.
The flange connection is easy to use and can withstand large pressures.
1. Production Information
| Product name | Titanium Welding Neck Flange |
| Material grade | Gr1,Gr2,Gr7,Gr12 |
| Certificate | ISO9001:2008 |
| Standard | ANSI B16.5/ASTM B16.5/EN1092-1 |
| Size | NPS 1/2"~ 24" |
| Pressure | Class150-class 2500 |

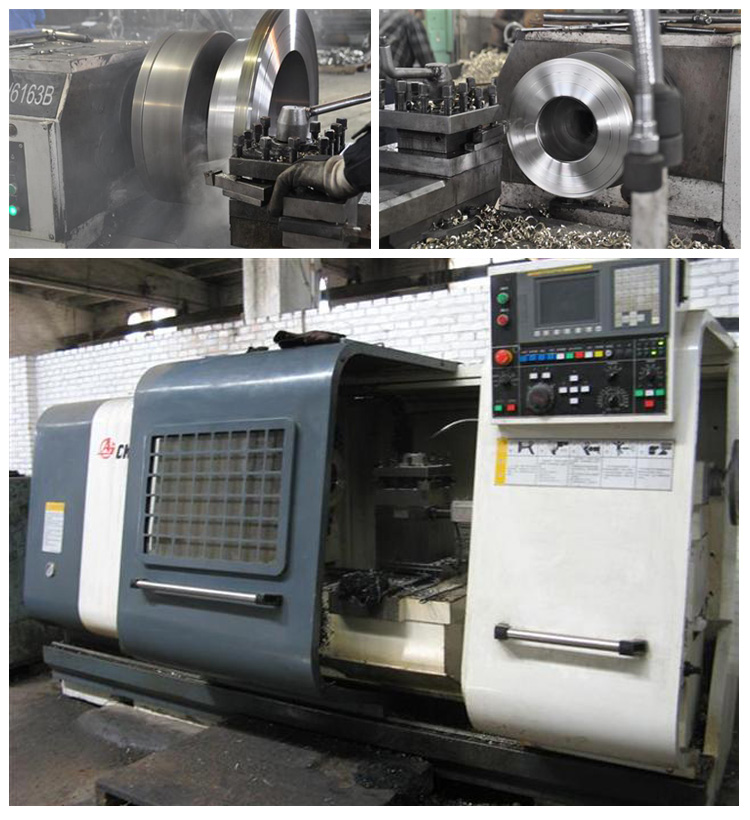

| Technique | Forged and CNC Machined |
| Type | WNRF, SORF, BLIND, SW, PL |
| Flange surface | FF,RF,TG,RJ etc |
| Application | Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery |
| Advantage | 1. Long service life |
| 2. Corrosion-resistant |
| 3. Hign yelled strength and tensile strength. |
2.Different grade titanium
| grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) |
| component | ksi | MPa | ksi | MPa |
| Gr1 | Ta1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | Ta2 | 50 | 345 | 40 | 275 | 20 |
| Gr7 | Ti-0.2Pd | 50 | 345 | 40 | 275 | 20 |
| Gr9 | Ti-3Al-2.5V | 90 | 620 | 70 | 483 | 15 |
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 483 | 50 | 345 | 18 |
3. Cooperation with us will provide you a strong guarantee
1.ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3.Excellent after-sale service.
4.Rapid inquiry reply, within 2 hours.
5.Fair payment term
6.Professional technical adviser
7.Material certificate
8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).
Customized Titanium flange & Relevant Products are welcomed.
Baoji Lihua Non-ferrous Metals Co., Ltd
FAQ
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us.
